Automatic Weather Station is generally used to detect meteorological elements.The classification is different deponds on specific applications, please take a look at the following details.(1)High accuracy digital automatic weather station
The meteorological elements with complete observing factors and observable are: environment temperature, humidity, dew point temperature, wind speed, wind direction, pressure, total solar radiation, rainfall, ground temperature (including surface temperature, shallow ground temperature, deep ground temperature), soil moisture, soil water potential, soil heat flux, evaporation, carbon dioxide, sunshine hours, direct solar radiation, ultraviolet radiation, earth radiation, net radiation, and environmental gases total 20 indicators. It has the characteristics of stable performance, high detection precision, unattended, etc. It can meet the business requirements of professional meteorological observation.
(2)Mobile automatic weather station
The mobile automatic weather station adopts an integrated design. It has mobile observation capability, high measurement accuracy, and a movable observation system that integrates multiple meteorological elements. Measure wind direction, wind speed, temperature, humidity, air pressure, rainfall, illuminance, soil temperature, soil moisture, dew point, solar radiation, solar ultraviolet and other information and make announcements and trend analysis. Meteorological data can be transmitted through various communication methods. Transmitted to the Meteorological Center computer meteorological database to facilitate the user's use of weather data, analysis and processing. According to needs (measuring meteorological elements), the corresponding modules and sensors can be flexibly increased or decreased, and any combination is convenient and fast.
(3) Portable automatic weather station
The portable automatic weather station is a portable observation system that is easy to carry, easy to use, has high measurement accuracy, and integrates many meteorological elements. The system adopts a new integrated structural design, excellent workmanship, can be measured out of the box, and the measurement position is flexible (fields, trees, buildings, valleys, etc.). The overall weight of the core monitoring section does not exceed 5kg. It is highly integrated, compact and portable.
(4)On-board automatic weather station
The most commonly used is to place the weather station above the roof of the vehicle, so that as long as the car can reach it, it can become a monitoring point. However, when the traditional automatic meteorological station is used in an on-vehicle application, due to the change of the direction and speed of the vehicle during the course of travel, the wind speed and direction value in the measurement result is greatly deviated. In order to solve this problem, the vehicle-mounted automatic weather station Through the built-in GPS and electronic compass in the weather station, it broke through this limitation and completed the research and development of the vehicle-mounted automatic weather station, realizing true mobile observation.
(5)Photovoltaic plant environmental test system
Photovoltaic power plant environmental monitoring system is the latest research and development of professional environmental monitoring system for photovoltaic power stations, the device uses a new integrated structural design, easy to carry, high measurement accuracy, easy to use, can collect temperature, wind speed, direction, solar radiation, rainfall , air pressure, battery backplane temperature and other information and make announcements and trend analysis, at the same time, through a variety of communication methods, meteorological data can be transmitted to the Meteorological Center computer meteorological database, to facilitate the use of meteorological data, analysis and processing, is Photovoltaic plant ideal equipment for monitoring environmental factors
(6) Tourist automatic weather station
The Automatic Meteorological Station for Scenic Spots is a practical automatic weather station for major scenic spots and urban users. It can measure conventional weather elements such as wind direction, wind speed, temperature, humidity, air pressure, and rainfall, and can also be used for ultraviolet rays and special zeros. The observation of ground temperature (that is, zero-cm soil surface, cement surface, asphalt surface, and lawn) can also increase visibility, pollen concentration, and monitoring of pollution indices such as carbon dioxide, sulfur dioxide, carbon monoxide, and noise according to the needs of users, and provide environmental protection for scenic spots and cities. Provide scientific basis. The observation elements can be flexibly adjusted and increased or decreased according to the demand. A variety of indoor and outdoor display screens can also be provided to provide tourists and citizens with various real-time meteorological data.

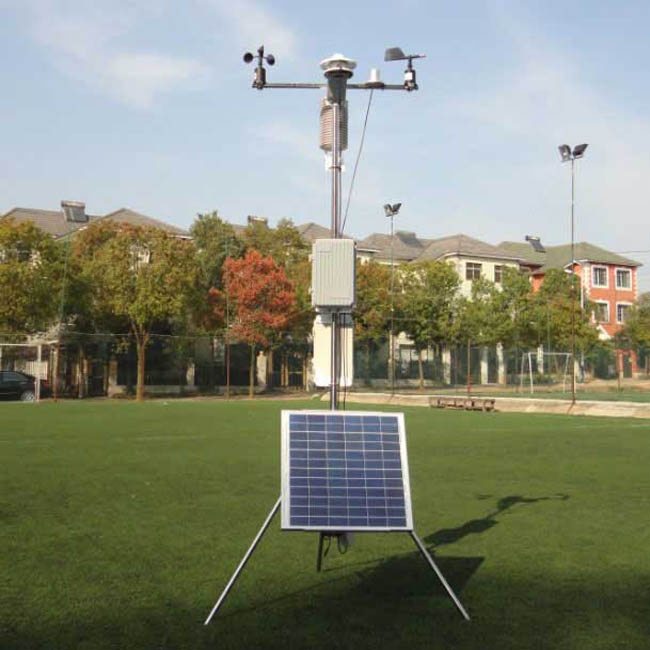

(7) Campus automatic weather station
The campus weather station professionally configures equipment for observing indicators that are closely related to the living environment. The automatic weather station responds to the current environmental data indicators in the form of charts and data for the collected data information. A variety of sensors can be used to collect, store, and display elements such as air pressure, air temperature, relative humidity, wind direction, wind speed, rainfall, solar radiation, and air quality. The automatic weather station can also publish relevant information through the external weather information display screen, and also can query the data information collected by the weather station through the campus website to facilitate teachers and students to keep abreast of the weather changes and promote scientific inquiry in science education in primary and secondary schools. The launch.
The above is a brief introduction for the classification information of Automatic Weather Station for your reference, more details can consult ZM SENSOR: www.zmsensor.com
